Scheme of walls and ceilings

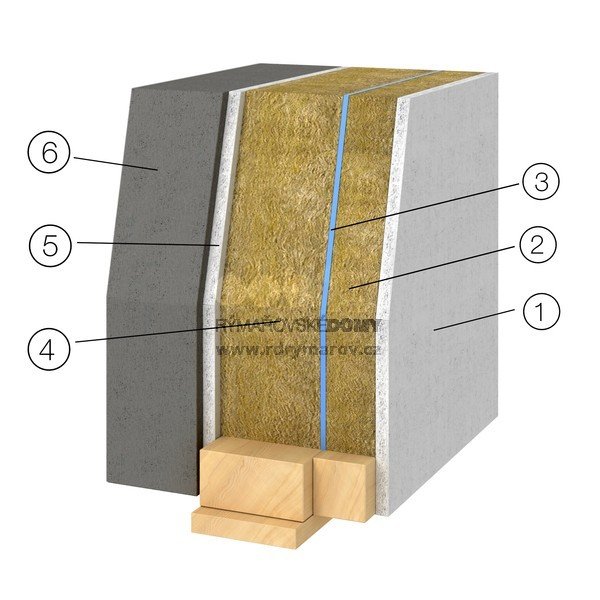

Scheme of standard outside wall

Schéma obvodové stěny s izolační předstěnou

  1. Fermacell - gypsum - fibre board, 15 mm
  2. Wooden frame (filled with heat insulation) 40 mm
  3. Vapour barrier
  4. Wooden frame (filled with heat insulation) 120 mm
  5. Fermacell - gypsum - fibre board, 15 mm
  6. Thermo - facade 107 mm
  • Total thickness 297 mm
  • Heat passage coefficient U = 0,16 W/m2.K


Scheme of outside wall with extra insulation

Schéma obvodové stěny pro pasivní dům

  1. Fermacell - gypsum - fibre board, 15 mm
  2. Wooden frame (filled with heat insulation) 60 mm
  3. Vapour barrier
  4. Wooden frame (filled with heat insulation) 120 mm
  5. Fermacell - gypsum - fibre board, 15 mm
  6. Thermo - facade 157 mm
  • Total thickness 367 mm
  • Heat passage coefficient U = 0,12 W/m2.K


Scheme of outside wall - diffusionally open

Schéma difuzně otevřené obvodové stěny

  1. Fermacell - gypsum fibreboard 15 mm
  2. Wooden frame (filled with heat insulation) 40 mm
  3. Fermacell Vapor - gypsum fibreboard with vapour stopper 15 mm
  4. Wooden frame (filled with heat insulation) 120 mm
  5. Thermo insulation from wood fibre 120 mm
  6. Diffusionally open facade system 7 mm
  • Total thickness 317 mm
  • Heat passage coefficient U = 0,15 W/m2.K


Scheme of inside wall

Schéma vnitřní nosné stěny

  1. Fermacell - gypsum - fibre board, 15 mm
  2. Wooden frame (filled with heat insulation) 120 mm
  3. Fermacell - gypsum - fibre board, 15 mm
  • Total thickness 150 mm


Scheme of inside partition wall

Schéma vnitřní dělící příčky

  1. Fermacell - gypsum - fibre board, 15 mm
  2. Wooden frame (filled with heat insulation) 60 mm
  3. Fermacell - gypsum - fibre board, 15 mm
  • Total thickness 90 mm

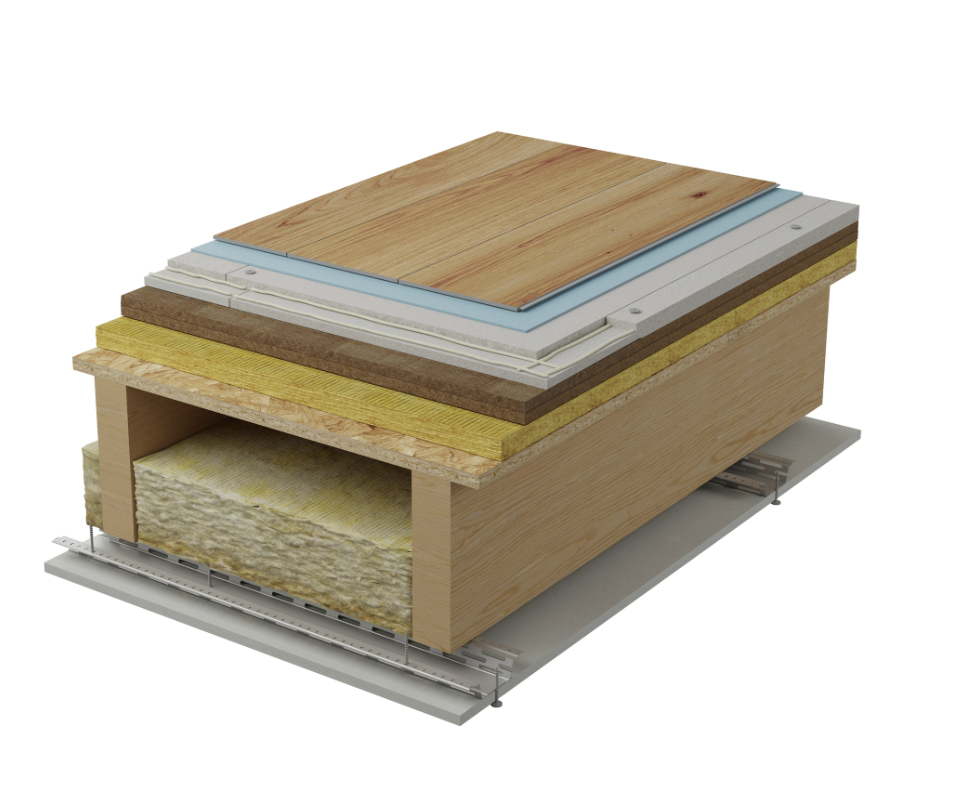

Scheme of ceiling over the ground floor

Schéma stropu nad přízemím

  1. Floor covering 10 mm
  2. Fermacell - floor element 25 mm
  3. Soft fibreboard, 60 mm
  4. Mirelon (insulation)
  5. Chipboard 22 mm
  6. Ceiling beam 60x240 mm; air gap 120 mm; heat insulation 120 mm
  7. Lath grid 30 mm
  8. 2x plasterboard 25 mm
  • Total thickness 412 mm


Scheme of ceiling over the attic

Schéma stropu nad podkrovím

  1. Heat insulation 100 mm
  2. Chipboard 22 mm
  3. Ceiling beam 60x180 mm (filled with heat insulation 180 mm)
  4. Vapour barrier
  5. Lath grid 30 mm
  6. Plasterboard 15 mm
  • Total thickness 347 mm
  • Heat passage coefficient U = 0,14 W/m2.K


Scheme of roof construction

Schéma střešní konstrukce

  1. Roof covering
  2. Roof laths 33 mm
  3. Counter - laths 33 mm
  4. Diffusion foil
  5. Rafter 60x180 mm; air gap 30 mm; lathing 60 mm (filled with heat insulation 240 mm)
  6. Vapour barrier
  7. Fermacell - gypsum - fibre 15 mm
  • Total thickness 351 mm
  • Heat passage coefficient U = 0,17 W/m2.K
